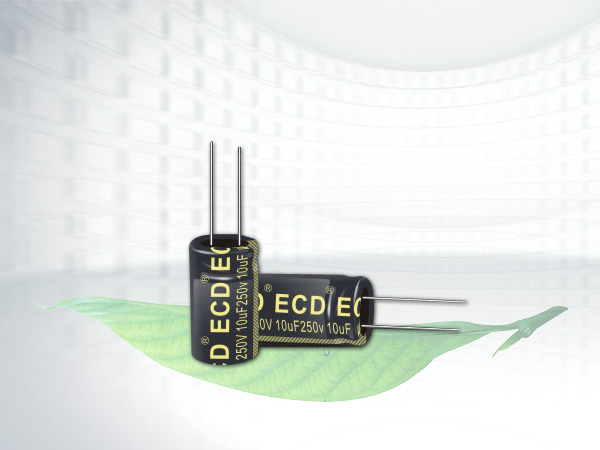

产品特点：
●130℃耐高温,耐高纹波及长寿命品
● 适用于LED驱动及电子镇流器.
● 寿命:130℃ 4000小时,或105℃ 15000-20000小时
|
|
SPECIFICATIONS
|
|
项目
|
特性
|
|
静电容量误差
|
-20%~+20%(120Hz, 20℃）
|
|
适用温度范围
|
-40~ +130℃
|
|
工作电压范围
|
160~450V
|
|
Rated Voltage (160~400V)
|
I ≦ 0.02CV+20uA( at 20℃,after 2 minutes )
|
|
泄漏电流
|
|
Rated Voltage (450V)
|
I ≦ 0.03CV+10uA( at 20℃,after 2 minutes )
|
|
散逸因素 (tan δ)
|
Rated Voltage (V)
|
160
|
200
|
250
|
400
|
450
|
|
tan δ (MAX)
|
0.08
|
0.08
|
0.08
|
0.10
|
0.12
|
|
耐久性
|
After application of the rated voltage at 130℃ 4000 hours or 105℃ 20000 hours ,
the capacitors shall meet the requirement below ,
|
|
Capacitance Change
|
Within ± 30% of Initial Value
|
|
tan δ
|
300% or less of Initial Specified Value
|
|
Leakage Current
|
Initial Specified Value or less
|
|
放置寿命
|
1000hours, no voltage applied, at 105℃。
After Test：UR to be applied for 30 minutes, 24 to 48 hours before measuremen
|
|
Capacitance Change
|
Within ± 30% of Initial Value
|
|
tan δ
|
200% or less of Initial Specified Value
|
|
Leakage Current
|
200% the Initial Specified Value or less
|
|
|
|
Permissible Ripple Current
|
|
|
|
Temperature Coefficient
|
|
TEMP (℃)
|
65
|
85
|
105
|
|
Coefficient
|
1.80
|
1.50
|
1.00
|
|
|
|
Frequency Coefficient
|
|
W.V (V)
|
Frequency (Hz)
|
|
120
|
1K
|
10K~30K
|
30K~100K
|
|
160~450
|
0.50
|
0.80
|
0.90
|
1.00
|
|
|
|
DIMENSIONS (mm)
|
|
|
ΦD
|
8
|
10
|
13
|
16
|
18
|
20
|
22
|
|
P
|
3.5
|
5
|
5
|
7.5
|
7.5
|
7.5
|
10.5
|
|
Φd
|
0.6
|
0.6
|
0.6
|
0.8
|
0.8
|
0.8
|
0.8
|
|
|
|
|
|
STANDARD RATINGS
|
|
D×L (mm); R.C.: (mA rms) at 105℃ 100KHz;
|
|
Cap
|
WV(V)
SV(V)
|
160
(200)
|
200
(250)
|
250
(300)
|
350
(400)
|
400
(450)
|
450
(500)
|
|
(uF)
|
Item
|
D×L
|
R.C.
|
D×L
|
R.C.
|
D×L
|
R.C.
|
D×L
|
R.C.
|
D×L
|
R.C.
|
D×L
|
R.C.
|
|
2.2
|
|
|
|
|
8×12
|
80
|
10×13
|
95
|
10×17
|
90
|
10×17
|
110
|
|
2.8
|
|
|
8×12
|
80
|
10×13
|
105
|
10×17
|
115
|
10×17
|
90
|
10×17
|
110
|
|
3.3
|
8×12
|
80
|
8×12
|
90
|
10×13
|
110
|
10×17
|
124
|
10×17
|
110
|
10×20
|
140
|
|
4.7
|
8×16
|
95
|
8×16
|
120
|
10×17
|
130
|
10×20
|
150
|
10×20
|
140
|
12×20
|
160
|
|
5.6
|
8×16
|
105
|
10×13
|
127
|
10×17
|
140
|
10×20
|
160
|
13×21
|
160
|
13×21
|
170
|
|
6.8
|
10×13
|
132
|
10×17
|
138
|
10×17
|
150
|
13×21
|
230
|
13×21
|
230
|
13×21
|
200
|
|
8.2
|
10×17
|
144
|
10×17
|
150
|
10×17
|
160
|
13×21
|
240
|
13×21
|
240
|
13×25
|
240
|
|
10
|
10×17
|
230
|
10×17
|
240
|
10×20
|
260
|
13×21
|
260
|
13×25
|
280
|
16×25
|
350
|
|
15
|
10×17
|
280
|
10×20
|
300
|
13×21
|
330
|
13×25
|
320
|
16×25
|
380
|
16×32
|
430
|
|
22
|
10×20
|
350
|
13×21
|
400
|
13×21
|
430
|
16×25
|
450
|
16×32
|
480
|
16×36
|
530
|
|
33
|
13×21
|
450
|
13×25
|
530
|
16×25
|
600
|
16×32
|
620
|
18×32
|
650
|
18×35
|
700
|
|
47
|
13×25
|
530
|
16×25
|
600
|
16×36
|
750
|
18×32
|
800
|
18×35
|
800
|
20×35
|
800
|
|
68
|
16×36
|
730
|
18×32
|
750
|
18×35
|
880
|
20×35
|
850
|
22×35
|
930
|
22×40
|
1030
|
|
100
|
18×32
|
950
|
18×35
|
1050
|
20×35
|
1150
|
22×35
|
1050
|
22×40
|
1100
|
25×40
|
1200
|
|
|
|
